Brand Name : AMG
Certification : ISO9001
Place of Origin : CHINA
MOQ : 3-10PCS
Payment Terms : T/T/Credit Card
Supply Ability : 30000-100000pcs per month
Delivery Time : 5-12 working days
Packaging Details : Plastic tube
Name : Step Reamer
Type : Reamer for steel
Coolant type : Outside coolant
Application : Steel, stainless steel
Shank precision : H7
Material : Carbide

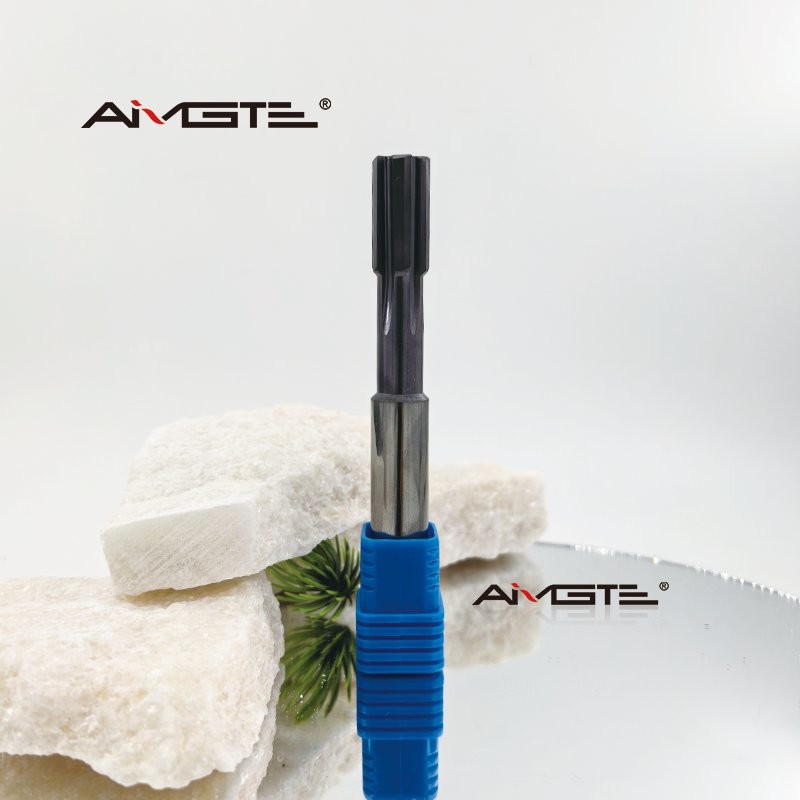

10mm 6 Flute AlTiN Coated Step Chamfer Reamer Internal Coolant for Steel Hard Alloys
This high-performance carbide step chamfer reamer combines 6-flute precision, AlTiN coating, and internal coolant channels to deliver superior hole finishing in hardened steels (HRC 45+), stainless steel, and exotic alloys. Designed for CNC machining centers, it performs chamfering and reaming in a single pass, reducing cycle times while maintaining H6-H7 tolerances (±0.01mm).
Features:
✔ AlTiN Coated Carbide Construction
Advanced AlTiN coating (4-5µm) withstands 900°C for extended tool life
Micro-grain carbide substrate (K10 grade) for wear resistance in hardened materials
✔ 6-Flute Spiral Design
30°-45° helix angle for optimal chip evacuation
Balanced cutting edges reduce vibration in high-speed machining
✔ Internal Coolant System
2-4 precision coolant holes (Ø1.2mm) for direct cutting-edge lubrication
Supports high-pressure coolant (70+ bar) for deep-hole applications
✔ Integrated Step Chamfer Geometry
Chamfer angle: 45°-90° (customizable)
Eliminates secondary operations (drilling + chamfering in one tool)
✔ High-Precision Ground Edges
H6-H7 tolerance compliance (ISO 286)
Mirror-like finishes (Ra ≤0.4µm)
Advantages:
50% Longer Tool Life vs. TiN-coated reamers in hardened steel
30% Faster Cycle Times – Combines chamfering + reaming
Chip-Free Machining – Spiral flutes + coolant prevent clogging
Deep-Hole Ready – Stable up to 5xD depth
Applications:
◼ Aerospace
Turbine disk bolt holes (Inconel 718)
Landing gear bearing bores
◼ Automotive
Transmission gear shafts (HRC 50+)
High-pressure fuel injectors
◼ Medical
Surgical implant threading (Ti-6Al-4V)
Bone screw pilot holes
◼ Mold & Die
Core/cavity finishing (H13/P20 steel)
Ejector pin chamfering

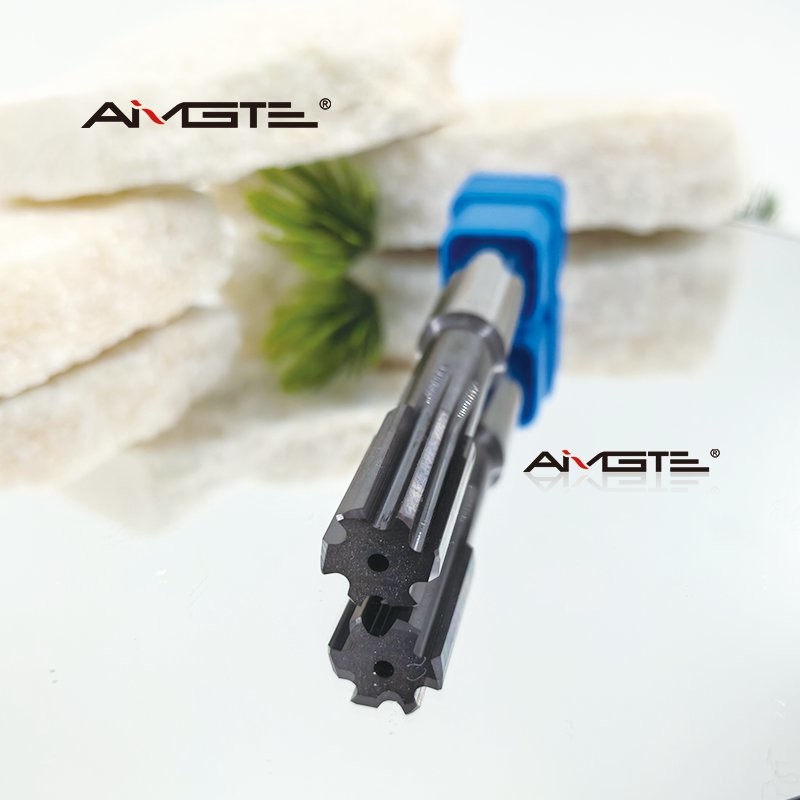

Detailed Pictures:
Our wokshp:
Promotion policy:
To help you experience our premium products, we’re excited to offer the following exclusive promotions for first-time buyers:
1.Free Test Samples
Get free samples (total value ≤ $20 USD) when you cover the international shipping cost.
Perfect for evaluating our product quality and performance risk-free.
2.$50 USD Discount on First Order
New customers can enjoy a $50 discount on the first order of $500 or more.
A great way to start our partnership with extra value!
Other products:
FAQ:
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2017.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by imported WALTER grinding machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
We also can send products to your shipping agent in China.
![]() |
