Tungsten carbide end mill cutting tool Custom Dovetail Milling Cutter

Brand Name : AMG

Certification : ISO9001

Place of Origin : CHINA

MOQ : 3-10PCS

Payment Terms : T/T/Credit Card

Supply Ability : 30000-100000pcs per month

Delivery Time : 5-12 working days

Packaging Details : Plastic tube

Product name : Custom Dovetail Milling Cutter

Material : Solid carbide

Application : aluminium, cast iron, steel, inconel 718, titanium, etc

Coating : Uncoated (optional TiAlN for steel)

Shank : Straight, Weldon flat, or custom

Precision : h6

Contact Now

Tungsten carbide end mill cutting tool Custom Dovetail Milling Cutter


Introduction:


A custom dovetail milling cutter made from tungsten carbide is a specialized cutting tool designed for machining precise dovetail grooves or undercuts in materials like steel, aluminum, titanium, or hardened alloys.


Features:


1. Material & Hardness


  • Tungsten Carbide (Uncoated):

    • High hardness (~90-94 HRA) for wear resistance.

    • Better heat resistance than HSS but may generate more friction than coated tools.

    • Ideal for applications where coatings could interfere (e.g., non-ferrous metals, graphite, or when a polished edge is needed).


2. Dovetail Geometry


  • Standard Angles: 45°, 60°, or 90° (custom angles available).

  • Cutting Edge Profile:

    • Sharp, uncoated edges for clean cuts in aluminum, brass, or plastics.

    • Optional polished flutes for improved chip evacuation in gummy materials.


3. Tool Dimensions (Customizable)


  • Diameter (D): 3mm–25mm (or larger, depending on shank).

  • Shank Diameter: Matches tool diameter or undersized for clearance.

  • Flute Count:

    • 2 Flutes: Best for aluminum, plastics (high chip clearance).

    • 3-4 Flutes: Smoother finish in steel or cast iron (but requires proper chip evacuation).

  • Cutting Length (L): Short (for rigidity) or extended (for deep slots).

  • Helix Angle:

    • Low (15°–30°): For steel, titanium.

    • High (35°–45°): For aluminum, non-ferrous metals.


Advantages:


  • Better for Non-Ferrous Metals: Coatings like TiN/TiAlN can sometimes adhere to aluminum.


  • Cost-Effective: Uncoated tools are cheaper than coated ones.


  • Sharp Edge Retention: Some high-precision applications (e.g., graphite machining) prefer uncoated tools for a keener edge.



Applications:



Aluminum, Brass, Copper (no coating reduces material adhesion).


Plastics & Composites (prevents melting/gumming).


Graphite Electrode Machining (uncoated carbide resists edge buildup).


General-Precision Dovetail Slots where coating is unnecessary.

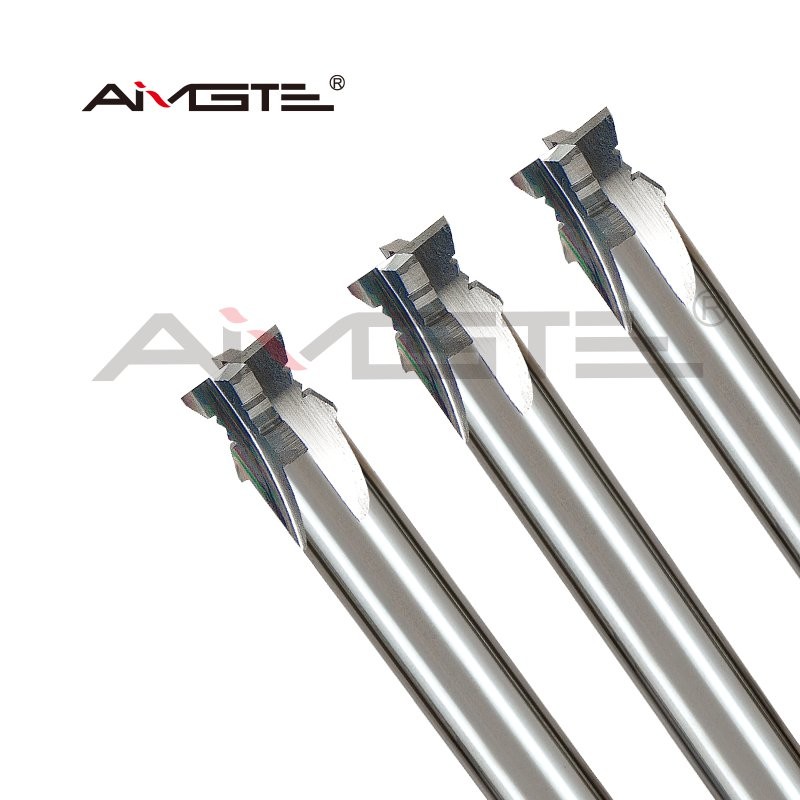

Detailed Pictures:

Tungsten carbide end mill cutting tool Custom Dovetail Milling Cutter



Our workshop:



Tungsten carbide end mill cutting tool Custom Dovetail Milling Cutter

Tungsten carbide end mill cutting tool Custom Dovetail Milling Cutter


New Customer Special Offers:


To help you experience our premium products, we’re excited to offer the following exclusive promotions for first-time buyers:


1.Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost.

Perfect for evaluating our product quality and performance risk-free.


2.$50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more.

A great way to start our partnership with extra value!


Our advantages:


1.Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.


2.Advanced inspection machines: We have ZOLLER, OMEGA, PG1000, etc. For inspecting each carbide tools.


3.Fast feedback: we offer 24 hours online service


4.Strict quality control system:
We strictly adhere to a three-stage inspection process for each tool:
Raw material inspection
Semi-finished product inspection after production
Final inspection after coating (pre-shipment check)
