Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring

Changzhou AMG Precision Tool Manufacturing CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring

Brand Name : AMG

Certification : ISO9001

Place of Origin : CHINA

MOQ : 3-10PCS

Payment Terms : T/T/Credit Card

Supply Ability : 30000-100000pcs per month

Delivery Time : 5-12 working days

Packaging Details : Plastic tube

Name : Carbide Ball Nose Lollipop End Mill for Aluminum

Coating : Uncoated/AlTiN/ZrN/CrN

Application : Metals

Shank precision : h6

Material : Carbide

OEM/ODM : Available

Contact Now

Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring



Introduction:


Our Carbide Ball Nose Lollipop End Mill is a specialized cutting tool designed for high-precision 3D contouring and finishing in aluminum and other non-ferrous materials. Featuring a unique long neck "lollipop" design crafted from ultra-fine grain tungsten carbide, this end mill delivers exceptional performance in high-speed CNC machining applications where deep cavities and complex geometries are required.

The 3-flute configuration and optimized ball nose geometry ensure superior surface finishes while maintaining aggressive material removal rates, making it ideal for aerospace, automotive, and mold-making industries.


Features:


1. Advanced Tool Geometry

  • True ball nose design (R0.005mm tolerance) for precision 3D profiling

  • Long neck "lollipop" reach (up to 10×D) for deep cavity machining

  • 3-flute asymmetric design reduces harmonic vibration and chatter


2. Premium Material Construction

  • Japanese-grade tungsten carbide substrate (0.4μm grain size)

  • Nano-composite coating (AlTiN/TiSiN options) for extreme heat resistance

  • Reinforced core structure prevents deflection during deep cuts


3. Performance Advantages

30% higher feed rates than standard ball nose end mills
Mirror surface finishes (Ra 0.2μm achievable)
4× longer tool life compared to HSS alternatives
Reduced cycle times through optimized chip evacuation


4. Customization Options

  • Diameter range: 1mm-20mm (0.039"-0.787")

  • Neck lengths: Standard (5×D), Long (8×D), Extra-Long (10×D)

  • Shank configurations: Straight, Weldon flat, HSK compatible

  • Special geometries: Custom corner radii, variable helix options


Advantages:


For CNC Programmers:

  • Achieve complex 3D contours in single passes

  • Maintain tight tolerances (±0.01mm) in deep pockets

  • Optimize tool paths with our free speed/feed calculator


For Production Managers:

  • Reduce tool inventory with multi-purpose performance

  • Lower cost per part through extended tool life

  • Minimize machine downtime with reliable cutting performance


Typical Applications:


① Aerospace Components

  • Turbine blade airfoil finishing

  • Wing spar contouring


② Automotive Manufacturing

  • Cylinder head porting

  • Die-cast mold polishing


③ 3D Mold & Die

  • Injection mold cavity finishing

  • Graphite electrode machining


④ General Precision Machining

  • Aluminum prototype surfacing

  • Composite material profiling

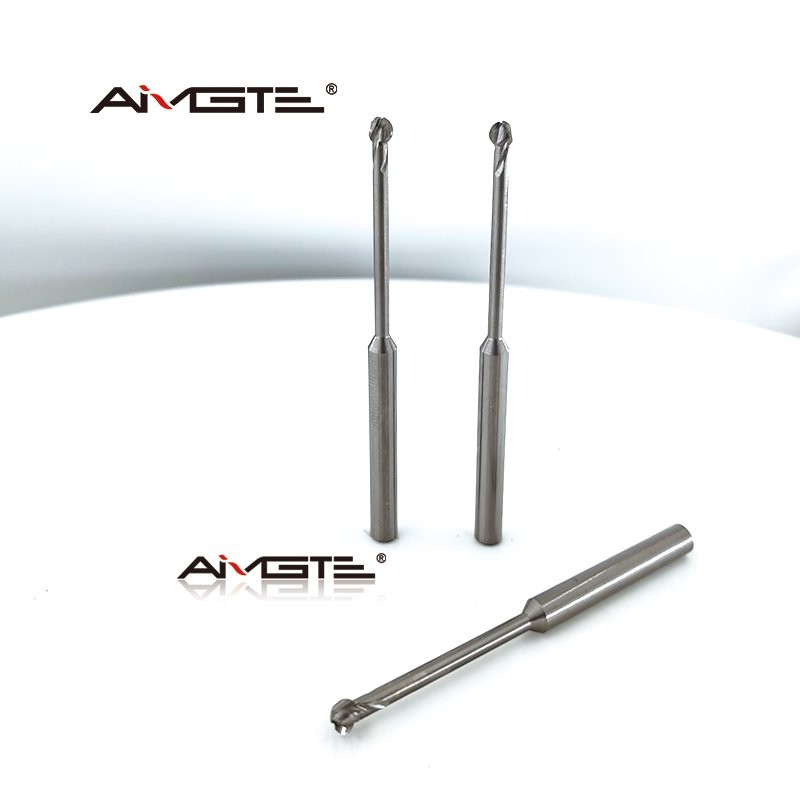

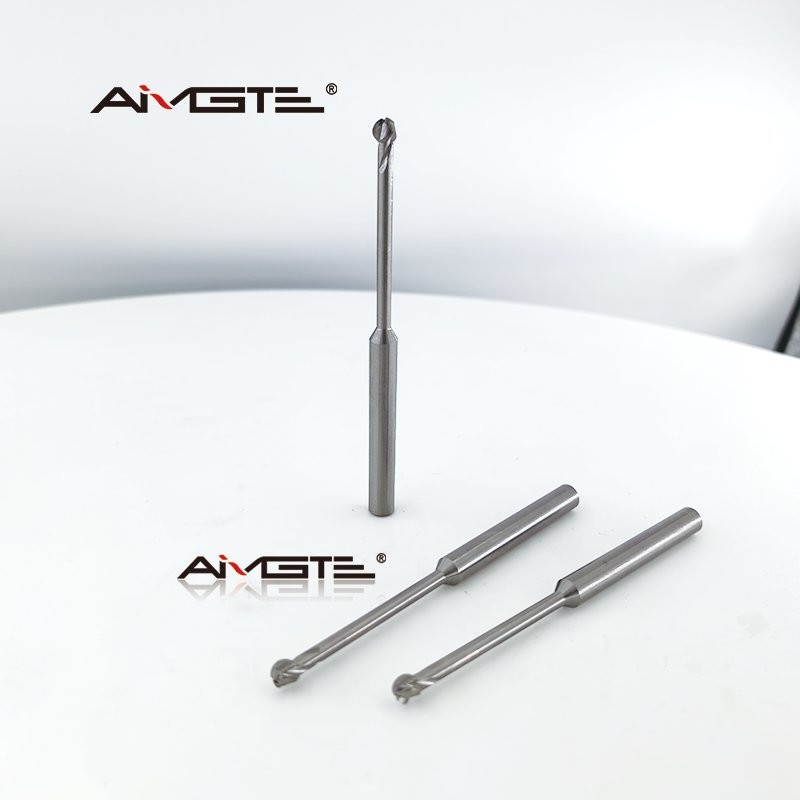

Detailed Pictures:


Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring

Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring


Our workshop:

Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring

Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring

Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring


Promotion policy:


To help you experience our premium products, we’re excited to offer the following exclusive promotions for first-time buyers:


1.Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost.

Perfect for evaluating our product quality and performance risk-free.


2.$50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more.

A great way to start our partnership with extra value!


Other products:

Carbide Ball Nose Lollipop End Mill for Aluminum 3 Flute High Speed CNC Milling Cutter Tungsten Steel Long Neck Design for 3D Contouring



FAQ:

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2017.

2. Which CNC grinding machine do you use?

All of our carbide tools are produced by imported WALTER grinding machines.

3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

We also can send products to your shipping agent in China.
